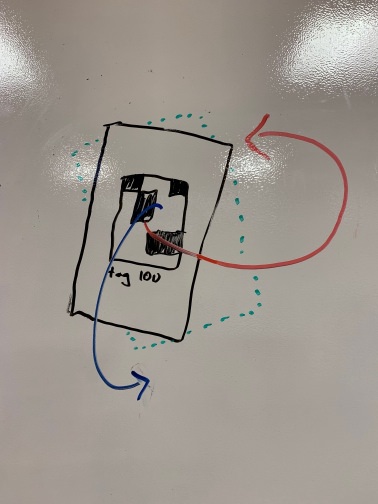

> For the complete documentation index, see [llms.txt](https://campus-rover.gitbook.io/lab-notebook/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://campus-rover.gitbook.io/lab-notebook/fiiva/cr-package/navigation/fiducials.md). # fiducials.md ## Overview ### Goals Fiducials are an attempt to localize a robot without any prior knowledge about location. They use unique images which are easily recognizable by a camera. The precise size and orientation of a fiducial tag in an image can uniquely localize a camera with respect to the tag. By measuring the location of the tag ahead of time, the location of the camera with respect to the global frame can be found. ### Aruco tags Aruco is a standard for fiducial tags. There are many variants but generally look like this: ![tag](https://docs.opencv.org/3.1.0/marker23.jpg) ### Tag detection Ubiquity Robotic's [`aruco_detect`](http://wiki.ros.org/aruco_detect) module accurately finds aruco tags in camera images. It relies on a compressed image stream from the robot camera and the camera's specs published as well. `aruco_detect` publishes a number of outputs, but crucially it sends a `geometry_msgs` transform relating the fiducial to the camera on the topic `/fiducial_transforms`. This needs to be inverted to get the transform from camera to tag. ### `TF` publishing The transform from camera to fiducial can be combined with a transform between the map and fiducial to find the pose of the camera. This is best done using `ROS`'s extensive `tf` tooling. Each fiducial location can be published as a static transform and a `TransformListener` can find the total transform from map to camera. ## Usage `aruco_detect` is brought up as part of the `cr_ros` `bringup.launch` file, but can be independently launched with `roslaunch aruco_detect aruco_detect.launch` if the proper topics are supplied in the launch file. [`process_fid_transforms.py`](https://github.com/campusrover/cr_ros/blob/master/src/process_fid_transforms.py) takes the output of `aruco_detect` and publishes pose messages. It is in `cr_ros` and also in the bringup file. Static `tf` publishers are also needed for tag position. See "adding a new tag" below. One static publisher is needed to correct a 90 offset. This should relate the frame `fiducial_camera` to `rotated_fiducial_camera` with a transform of π/2 in the yaw (`rosrun tf static_transform_publisher 0 0 0 1.57079632679 0 0 /fiducial_camera /rotated_fiducial_camera 100`). ### Locating tag on map New tags can be placed on the map and published as static transforms from within the `bringup.launch` file. To find the `x`, `y`, and `z` position, use a tape measure. The three euler angles describing the angle of the tag are more difficult to determine. To find the first rotation parameter, x, consider the orientation of the fiducial relative to the map. If the fiducial faces north x = 0, if west x = π/2, if south x = π, if east x = 3π/2. The second (y) component accounts for leaning left or right of fiducial on the verical wall. If positioned straight up, it should be set to π which is approximately 3. The third (z) component describes how far forward or back the fiducial is oriented. If the wall is vertical, roll = 0. If leaning forward, 0 < z < π /2. If leaning backwards, 2π > z > 3π/2. ![rotation\_example](https://i.imgur.com/dsL8551.jpg) x is red, y is green, z is blue ### Adding a new tag Add a new tag to the bringup. The static publisher accepts x, y, z, for position and either yaw, pitch and roll or a quaternion for rotation, but for your own sake please chose the former. ## Challenges in implementation Fiducials were very challenging to implement and it's worth spending some time discussing the reasons why and how we can learn from the process. To start, fiducial localization involves complex coordinate transforms from image space to tag-relative space and then to map-relative space. By itself, this would have been fine. It is easy for a computer to calculate the matrix multiplication at the heart of these transforms, but it is hard for a developer to debug. More clarity and better documentation about the output of the tooling would have helped. In addition, the transforms are implemented in quaternions and other complex formats which are difficult to understand in any form and took some time to get used to. A few tools exist which solve "fiducial slam" and originally we tried to implement one of those to compute the transforms from image space to map-relative space. These tools are, in fact, not built to solve that problem, but to assist in mapping the fiducials in the first place - a problem less challenging in our use case. The biggest breakthrough came when I began using the built in `tf` tooling. This allowed me to work with a robust set of tools including `rviz` for easy debugging. Through this process I was able to see that the `y` and `z` axes needed to be swapped and that an inversion of the transform was needed. These were not clear when using other tools, but were at the heart of the strange results were were seeing early on. More familiarity with `ROS` would have brought me to `tf`s sooner, but now I have that familiarity for next time. All together, I'm not sure what lesson there is to take away from this. Sometimes hardcore debugging is required. ## *@Alexander Feldman, (thanks @Ben and @Ari too!)* --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://campus-rover.gitbook.io/lab-notebook/fiiva/cr-package/navigation/fiducials.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
